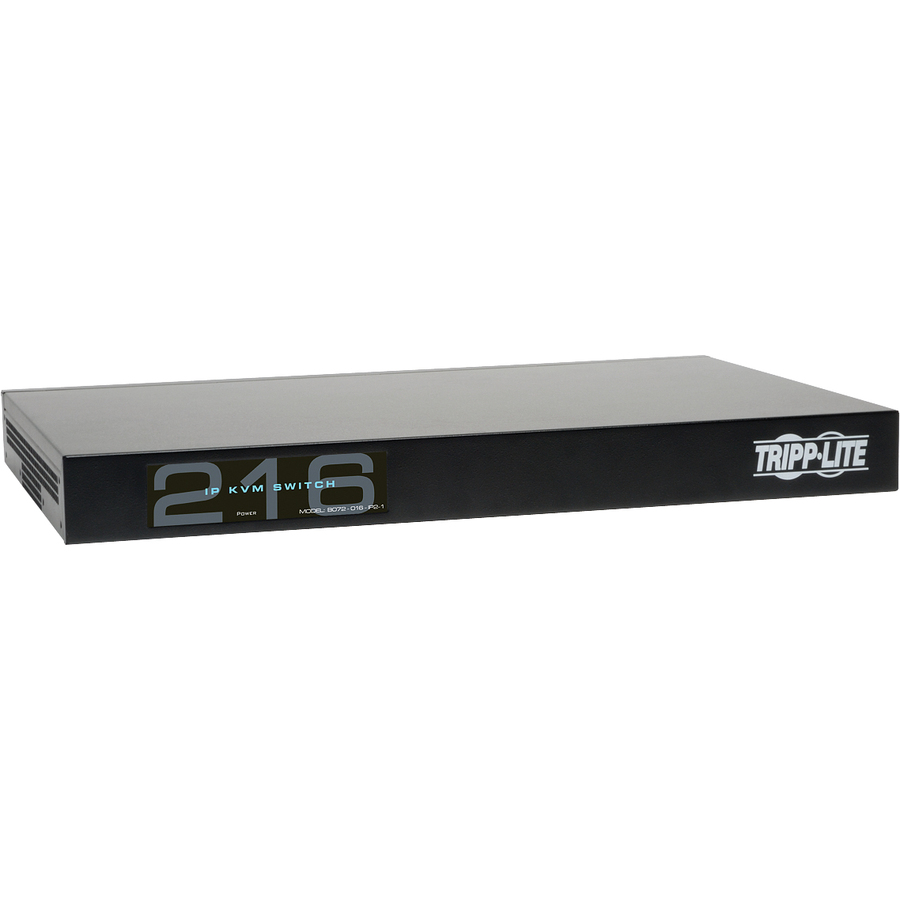

Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 2 Remote + 1 Local User 1U Rack-Mount

Eaton Corporation

B072-016-IP2

http://www.eaton.com

Tripp Lite series

NetCommander

B072-016-IP2

16-Port, 2+1 User NetCommander Cat5 IP KVM Switch

Tripp Lite's B072-016-IP2 KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-016-IP2 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use. Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes. Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-IP2.

More from the Manufacturer

KVM Switchbox

Digital

16

1

2

100 ft

Full HD

1920 x 1080

Yes

Yes

Yes

20

2

1

Rack-mountable

1U

1.7"

17.3"

11"

7.46 lb

• 16-Port, 2+1 User NetCommander Cat5 IP KVM Switch
• Rackmount Hardware
• 2 x Power Cords

Yes

Restriction of Hazardous Substances (RoHS)

Taiwan

Yes

3 Year
