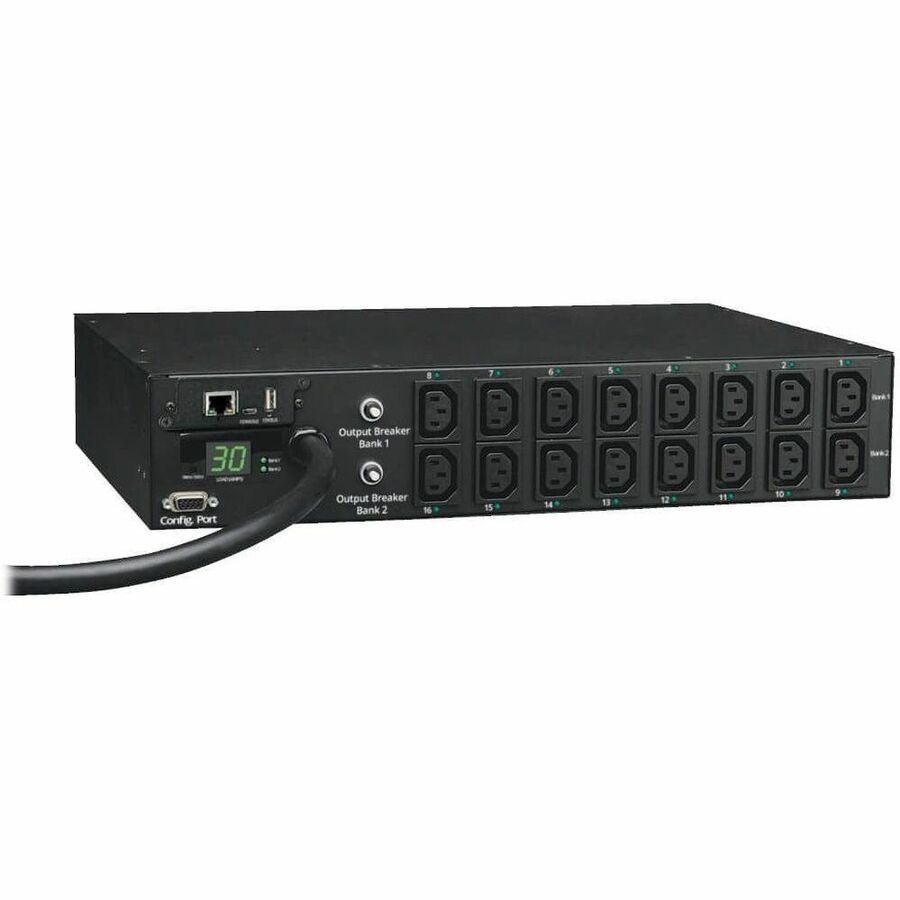

Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (16 C13) L6-30P Input 12 ft. (3.66 m) Cord 2U Rack-Mount TAA

Eaton Corporation

PDUMH30HVNET

http://www.eaton.com

Eaton

PDUMH30HVNET

PDUMH30HVNET PDU Switched 208V - 240V 30A 16 Outlet

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.

The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip

More from the Manufacturer

PDU

Switched

NEMA L6-30P

1 x NEMA L6-30P

IEC 60320 C13

16 x IEC 60320 C13

Overload Protection

230 V AC

208 V AC - 240 V AC

240 V AC

Protocols:

• HTTP
• HTTPS
• PowerAlert Network Management System
• SMTP
• SNMPv1
• SNMPv2
• Telnet
• FTP
• DHCP
• BOOTP
• NTP

Rack-mountable

2U

3.5"

17.5"

12.5"

13.80 lb

• PDUMH30HVNET PDU Switched 208V - 240V 30A 16 Outlet
• Rackmount PDU
• 4 post compatible mounting brackets

Taiwan

Yes

Yes

Restriction of Hazardous Substances (RoHS)

2 Year
