Brand Tripp Lite

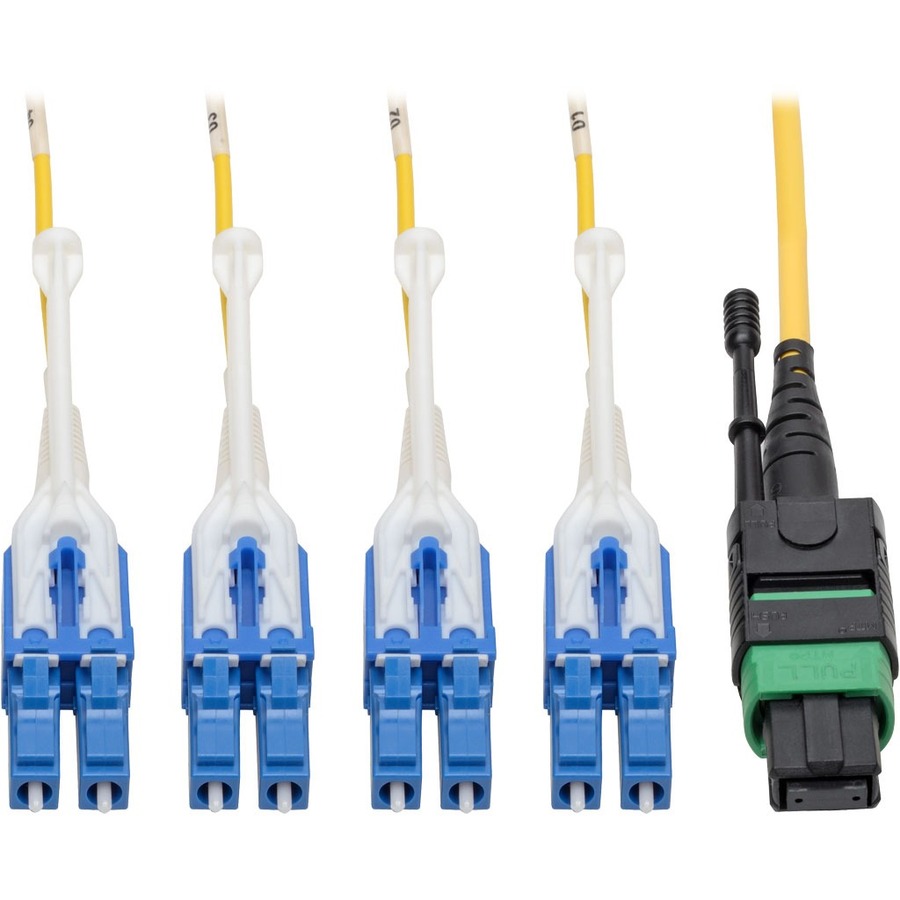

Eaton Tripp Lite Series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 3 m (10 ft.)

Fiber Optic for Network Device, Switch, Hub, Router - 12.50 GB/s - Patch Cable - 9.84 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - 8.3/125 µm - Yellow

★ 4.8

SKU: 5992736

VPN #: N390-03M-8LC-AP

In Stock (76)

Price

$ 308.55

♡ ↗

🚚

Committed to Better Shopping

Delivering value with every purchase.

☎

Support Every Day

Support from 8:30 AM to 10:00 PM everyday.

↻

Easy Returns

Flexible return and replacement options where applicable.

TRIPP LITE CABLE MTP/MPO TO 8XLC FIBER BREAKOUT 3M

Summary	Tripp Lite series N390-03M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 3 m - 10 ft (3.05 m) Fiber Optic Network Cable for Network Device, Switch, Hub, Router - First End: 1 x MTP/MPO Network - Female - Second End: 8 x LC Network - Male - 100 Gbit/s - Patch Cable - 8.3/125 µm - Yellow
Stock	In Stock (76)
Seller	Orders
Brand	Tripp Lite
Quality label
SKU	5992736
VPN #	N390-03M-8LC-AP
UPC	0037332205599

Tech Specs

Manufacturer

Eaton Corporation

Manufacturer Part Number

N390-03M-8LC-AP

Manufacturer Website Address

http://www.eaton.com

Brand Name

Tripp Lite series

Product Model

N390-03M-8LC-AP

Product Name

N390-03M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 3 m

Marketing Information

The N390-03M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames) in enterprise installations. It's optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. Its plenum-rated jacket makes it ideal for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.

The 12-fiber MTP/MPO connector is about the same size as an SC connector, but is 12 times denser, freeing up rack space for other cables. The APC connector is angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-03M-8LC-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.

The N390-03M-8LC-AP uses eight fibers to fully transmit 40GBASE-PLR4 with four fibers transmitting at 10 Gbps in each direction. Its slim, space-saving uniboot design allows easier cable management. The LC UPC connector's premium-grade ceramic ferrule is designed for fast applications of 10 GbE and higher.

The singlemode cable is colored yellow for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
