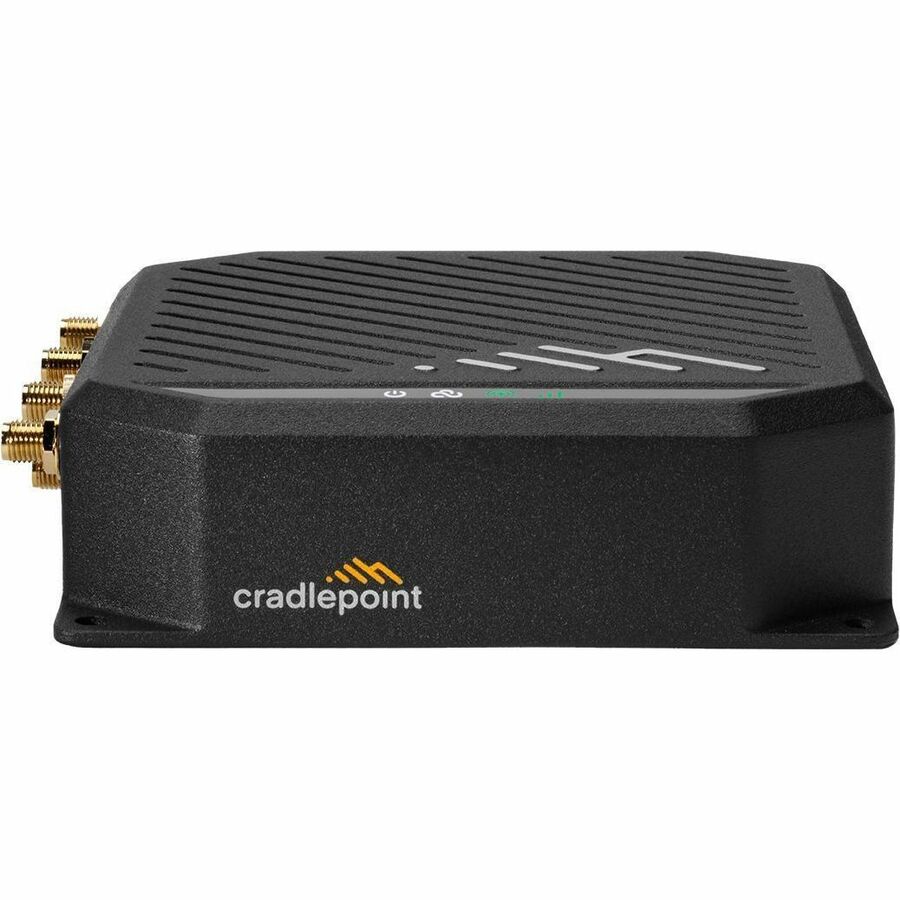

The Ericsson Cradlepoint S700 semi-ruggedized router for IoT networks as a semi-ruggedized, cloud-managed LTE router,built forlight industrial,IoT,andportableapplicationswheresecurity isafoundational requirement.Offeringconnectivity throughLTE pluswired and Wi-Fioptions, the S700accommodatesa variety of use casesin high-availability, portable, or fixed uses. The S700 is available with IoT EricssonNetCloudService plans, whichprovidefeaturesoptimizedfor each unique deployment.
Semi-Ruggedized IoT Solution
When coupled with theNetCloudIoT service plan, the S700 routerprovidesa compact,semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale.WithanIP30-ratedaluminum housingbuiltto withstand vibration and temperatureextremes anddesignedfor DIN railmounting,the S700is ideal for use inlight industrial applicationssuch asoil and gas monitoringor inportable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployedin the field, in buildings, or in embedded systems todeliver complete visibility, security, and control of connected devices anywhere.
Advanced, Cloud-Managed IoT Solution
For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Ericsson's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Ericsson's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.
Product Type
Modem/Wireless Router
Wi-Fi Generation
Wi-Fi 6
Network Band
Dual Band
Broadband Transmission Technology
Cellular
Wireless LAN Standard
IEEE 802.11ax
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.40 GHz
UNII Maximum Frequency
5 GHz
Cellular Generation
4G
Cellular Network Supported
LTE 600
Cellular Data Connectivity Technology
LTE Cat 4
Total Wireless Transmission Speed
221.75 MB/s
Total Number of Network Ports
2
Number of Network (RJ-45) Ports
1
USB
Yes
Number of Broadband (RJ-45) Ports
1
Ethernet Technology
Gigabit Ethernet
VPN Supported
Yes
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
SIM Size Supported
Nano
Product Material
Aluminum
Form Factor
DIN Rail Mountable
Height
1.3"
Width
4.8"
Depth
4.6"
Weight (Approximate)
1.14 lb
Package Contents
S700 Modem/Wireless Router
GPIO and Power Cable, 2x2, 2 meters, 20 AWG
Power Supply, 12 VDC, 2x2, 1.5 meters
2 x Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm
2 x Wi-Fi Antenna, 2.4/5 GHz RPSMA GRA 184 mm
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
